PRODUCT DETAILS
The 130 Series sliding patio door is a great product for the commercial market as well as for the modern home design market. 130 Series Aluminum sliding patio doors made from a lightweight aluminum frame and the frame material is very strong. Can create a modern yet timeless look. Our aluminum sliding patio doors feature a thermally enhanced design that increases energy efficiency and requires minimal maintenance. For more series of sliding patio doors, check out our ALUMINUM SLIDING DOORS page.
| Wall thickness | 2.0mm |
| Outer Frame Structure Depth | 130mm |
| Sash Structure Depth | 58mm |
| Insulation Strip Depth | 18mm |
| Frame Visible Face Width | 31mm |
| Intermediate Mullion Visible Face Width | 77mm |
| Sash Visible Face Width | 77mm |
| Compatible Glass Thickness | 24-39mm |
| Opening Function | Sliding Opening |
| Wind Pressure Resistance Performance GB/T 7106 | Grade 9, 5K Pa |
| Air Tightness Performance GB/T 7106 | Grade 8, 0.26m³/(m•h) |
| Water Tightness Performance GB/T 7106 | Grade 6, 700 Pa |
| Thermal Insulation Performance GB/T 8484 | Grade 7 |

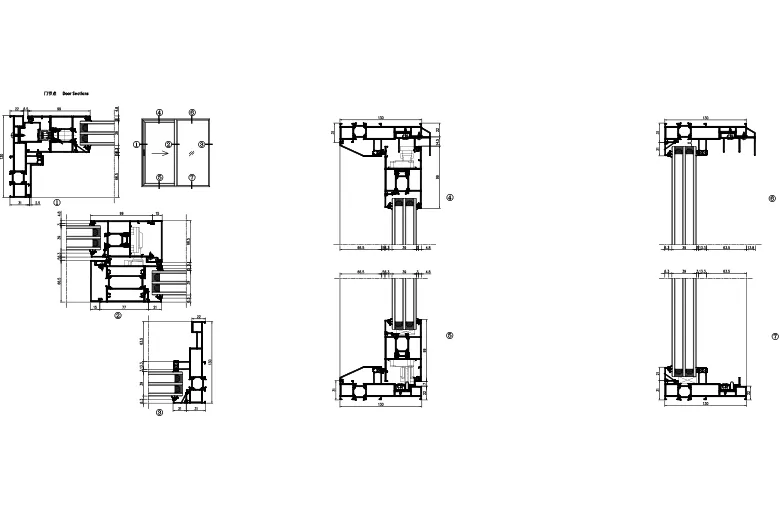

DRAWINGS
APPLICATION CASE
