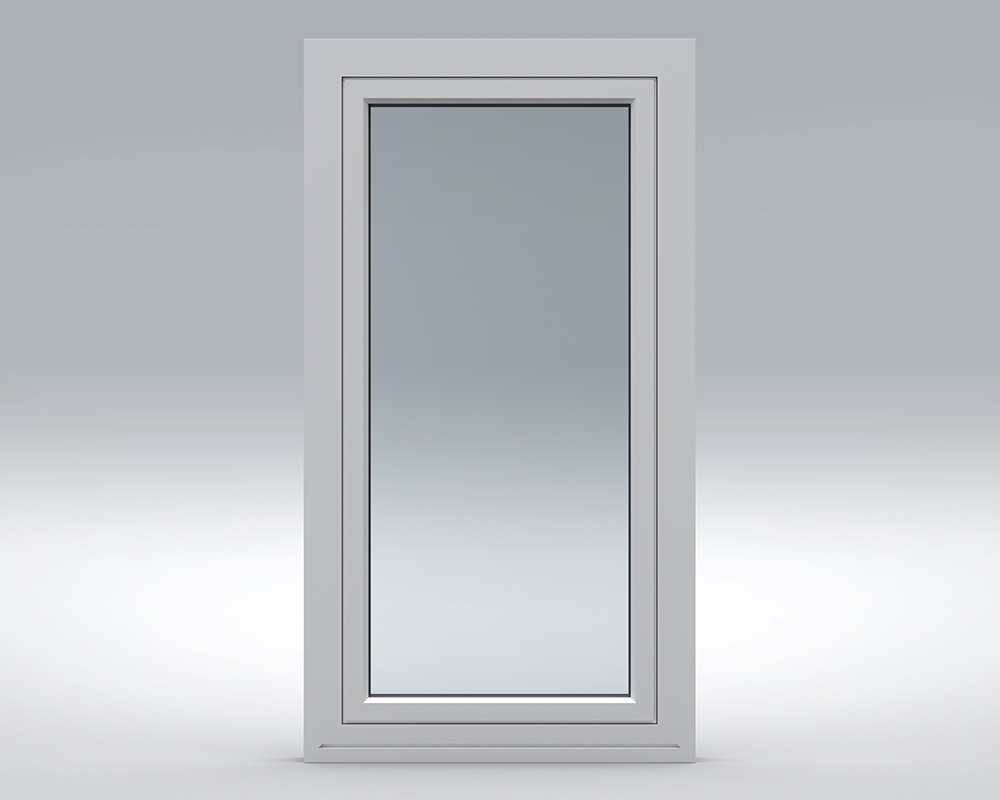

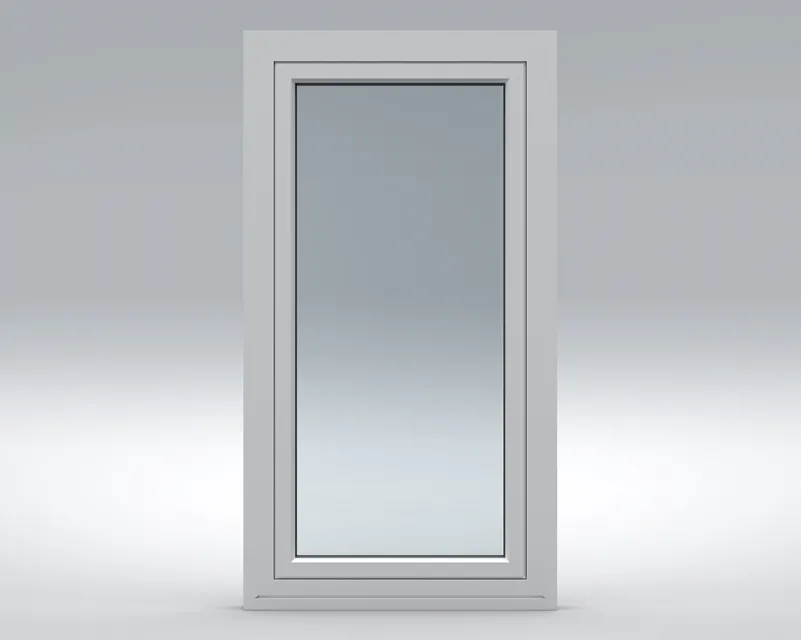

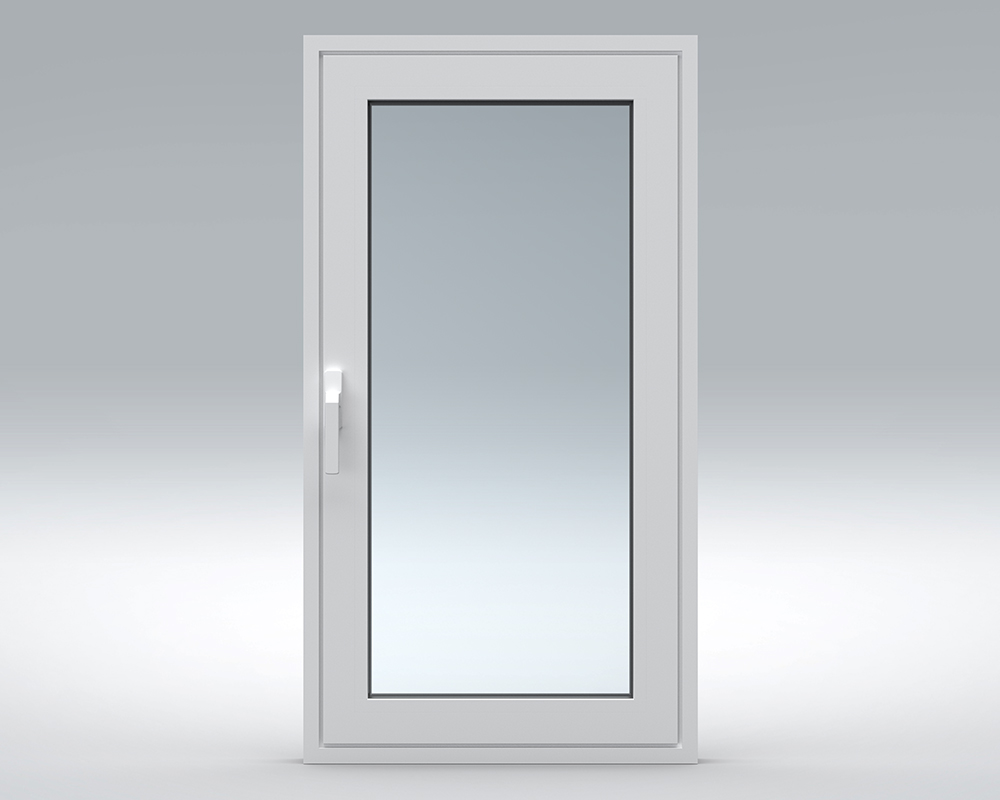

Aluminium Flush Casement Windows

Aluminium Flush Casement Windows

Flush casement windows are an ideal option for both modern and renovation projects due to their seamless, sleek exterior look and slender sightlines.

Our flush aluminium casement windows provide a lasting, stylish, and energy-efficient option, perfect for replacing heritage windows like timber or steel-framed ones. Offering various configurations and performance choices, they help achieve the sought-after clean, modern look homeowners desire in their homes.Each full flush casement window is custom made. Manufactured to your exact specifications with your choice of layout, glass, finishes and hardware.

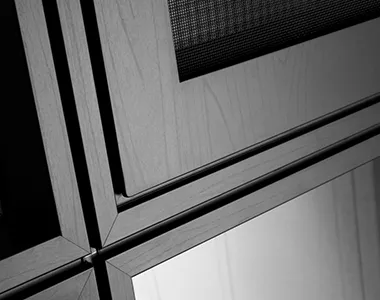

Market-leading slim sightliness

Frame made of high-strength, lightweight high-grade aluminum.

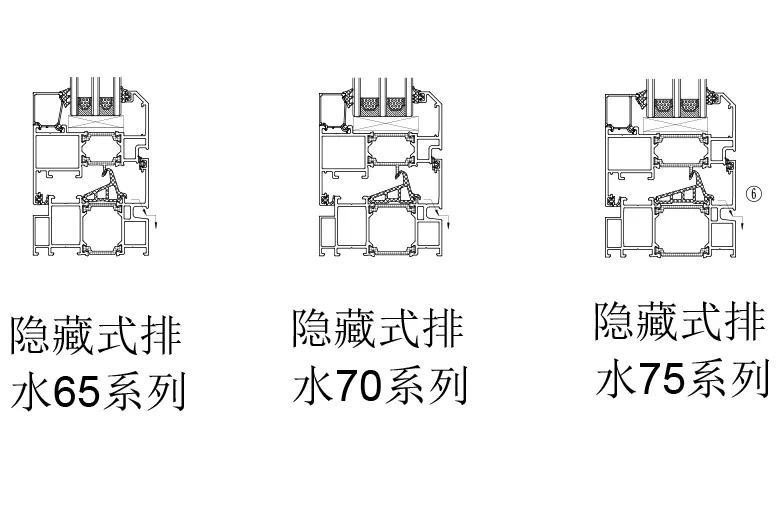

Concealed Drainage System: The windows feature an internal stepped drainage structure along with an exterior bottom drainage design, forming a comprehensive water drainage system.

Special corner sealing components at the junction points ensure optimal corner sealing, preventing water infiltration.

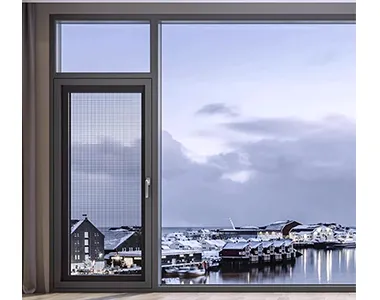

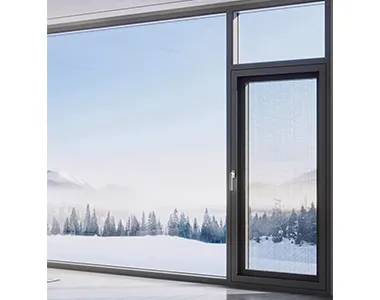

Dual Inward Opening: Embracing the concept of an integrated window screen, the windows come equipped with built-in stainless steel screens, combining minimalistic elegance with enhanced security. This design effortlessly merges aesthetic appeal with protective functionality

Aluminium Flush Casement Windows Parameters

Wall thickness1.8mm
Depth of outer frame structure70/75mm
Fan structure depth80/85mm
Insulation strip width30/35.3mm
Suitable glass thickness24-39mm
Design typeStandard window
Enable functionInner window/Outer window/Inner inverted window
Wind pressure resistance performance GB/T7106Level 9 5Kpa
Air tightness performance GB/7106Level 8 0.42m³(m•h)
Water tightness performanceGB/7106Level 6 700Pa
thermal insulating propertyGB/T84841.8-1.3W(㎡•k)
Sound insulation performanceGB/8485Level 3

Why Choose Flush Casement Windows?

Aesthetic Appeal: They provide a sleek and elegant appearance, sitting flush within the frame without any protruding parts, offering a clean and timeless look that suits both traditional and modern properties.

Energy Efficiency: These windows often come with excellent insulation properties, helping to keep your home warm in winter and cool in summer, potentially reducing energy bills.

Security: Modern flush casement windows come with robust locking mechanisms, enhancing the security of your home.

Low Maintenance: They're designed for easy upkeep, typically requiring minimal maintenance to keep them looking great.

Increased Property Value: Installing high-quality flush casement windows can add value to your property due to their durability and aesthetic appeal.

Ultimately, the choice of windows often depends on personal preference, architectural style, and budget. But flush casement windows do offer a blend of aesthetics, functionality, and efficiency that many homeowners find appealing.

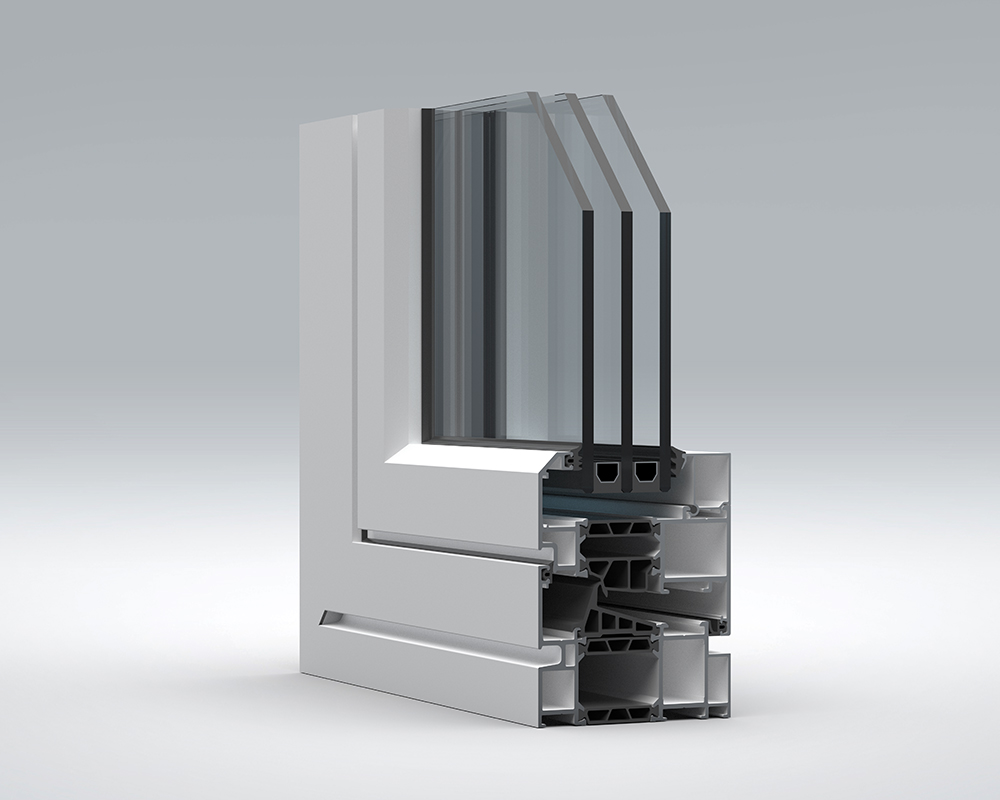

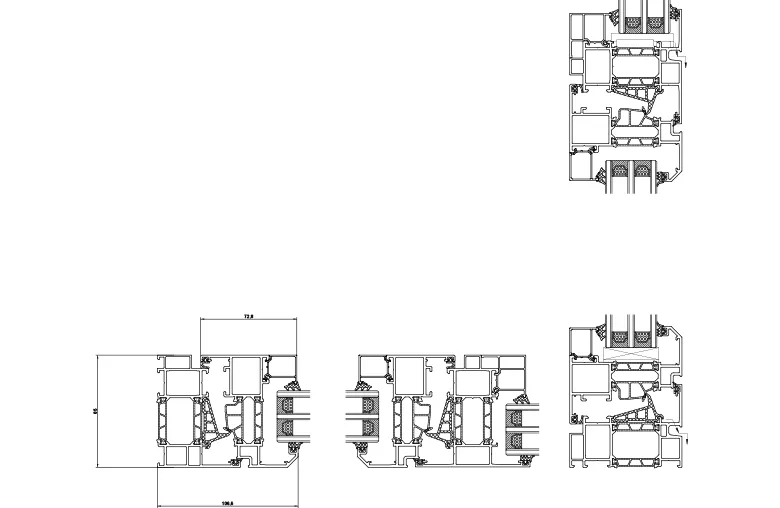

Drawings of Aluminium Flush Casement Windows
