PRODUCT DETAILS
The Integrated Mesh Casement Window combines an Aluminum Casement Window with a specialized high-security mesh, distinct from standard insect screens. Utilizing premium impact-resistant stainless steel woven into a high-density mesh, it fortifies home protection. Key features include heat insulation, soundproofing, anti-theft capabilities, airtightness, insect and dust-proofing, invisibility, and decorative qualities. It boasts high-quality, secure concealed hinges and premium aluminum die-cast multi-point handles. This full set of casement windows and security screens offers a high-quality finish.
| Wall thickness | 1.4/1.8mm |
| Depth of outer frame structure | 64/65/75/80mm |
| Fan structure depth | 74/75mm |
| Insulation strip width | 24/25.3mm |
| Frame visible surface width | 22/26/28/30/38/46mm |
| Suitable glass thickness | 24-39mm |
| Design type | Standard window |
| Enable function | Inner window/Outer window/Inner inverted window |
| Wind pressure resistance performance GB/T7106 | Level 9 5Kpa |
| Air tightness performance GB/7106 | Level 8 0.5m³(m•h) |
| Water tightness performance GB/7106 | Level 6 700Pa |
| thermal insulating property GB/T8484 | 2.0-1.8W(㎡•k) |
| Sound insulation performance GB/8485 | Level 3 |

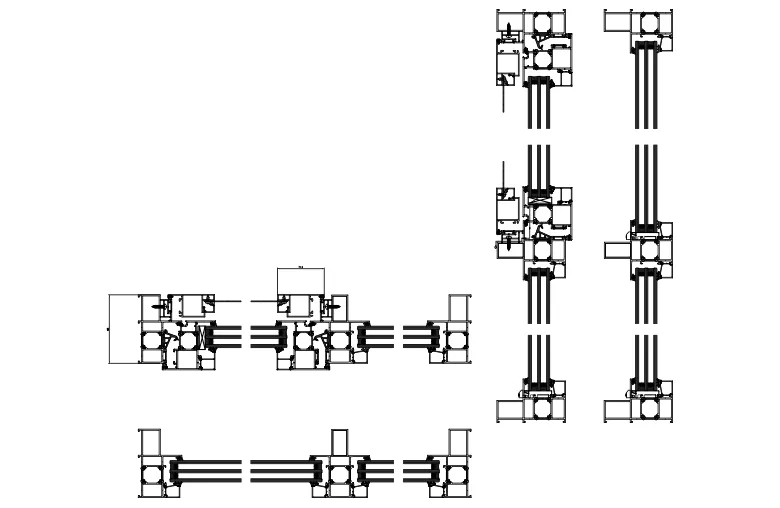

DRAWINGS
APPLICATION CASE
