PRODUCT DETAILS
Product Parameters
| Wall thickness | 1.4/1.8mm |
| Depth of outer frame structure | 79mm |
| Fan structure depth | 89mm |
| Insulation strip width | 39/40mm |
| Frame visible surface width | 30/38/42/46mm |
| Suitable glass thickness | 39-47mm |
| Design type | Standard window |
| Enable function | Inner window/Outer window/Inner inverted window |
| Wind pressure resistance performance GB/T7106 | Level 9 5Kpa |
| Air tightness performance GB/7106 | Level 7 0.3m³(m•h) |
| Water tightness performanceGB/7106 | Level 6 700Pa |
| thermal insulating propertyGB/T8484 | 1.3-1.1W(㎡•k) |
| Sound insulation performanceGB/8485 | Level 4 |
Introducing the 80 series thermal break aluminum alloy windows, designed to provide exceptional insulation for your home. Constructed with high-quality materials, these windows offer superior thermal insulation, helping to keep your home warm and comfortable during the colder months. With its advanced technology and sleek design, the 80 series thermal break aluminum alloy windows not only offer excellent insulation but also enhance the overall look and feel of your home. Upgrade your home with the 80 series thermal break aluminum alloy windows and enjoy the ultimate combination of energy efficiency and style.

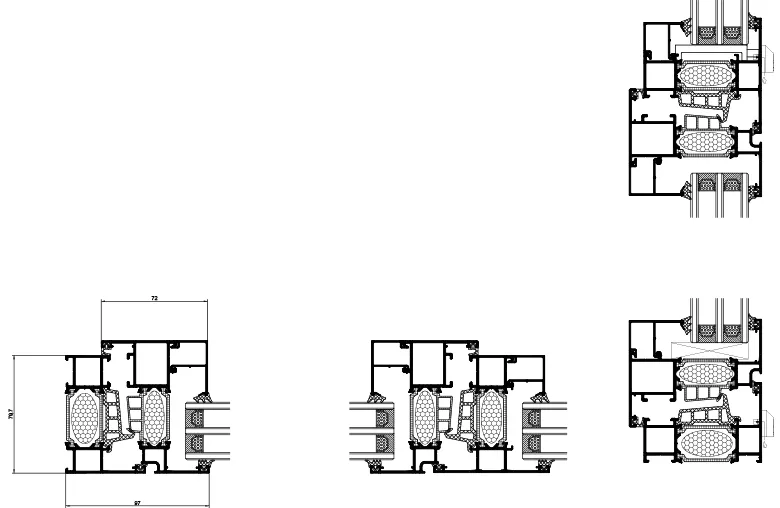

DRAWINGS
APPLICATION CASE
