PRODUCT DETAILS
Product Parameters
| Wall thickness | 1.4/1.8mm |
| Depth of outer frame structure | 70/75mm |
| Fan structure depth | 80/85mm |
| Insulation strip width | 30/35.3/35mm |
| Frame visible surface width | 28/30/38/46mm |
| Suitable glass thickness | 33-43mm |
| Design type | Standard window |
| Enable function | Inner window/Outer window/Inner inverted window |
| Wind pressure resistance performance GB/T7106 | Level 9 5Kpa |
| Air tightness performance GB/7106 | Level 7 0.42m³(m•h) |
| Water tightness performanceGB/7106 | Level 6 700Pa |
| thermal insulating propertyGB/T8484 | 1.8-1.3W(㎡•k) |
| Sound insulation performanceGB/8485 | Level 3 |

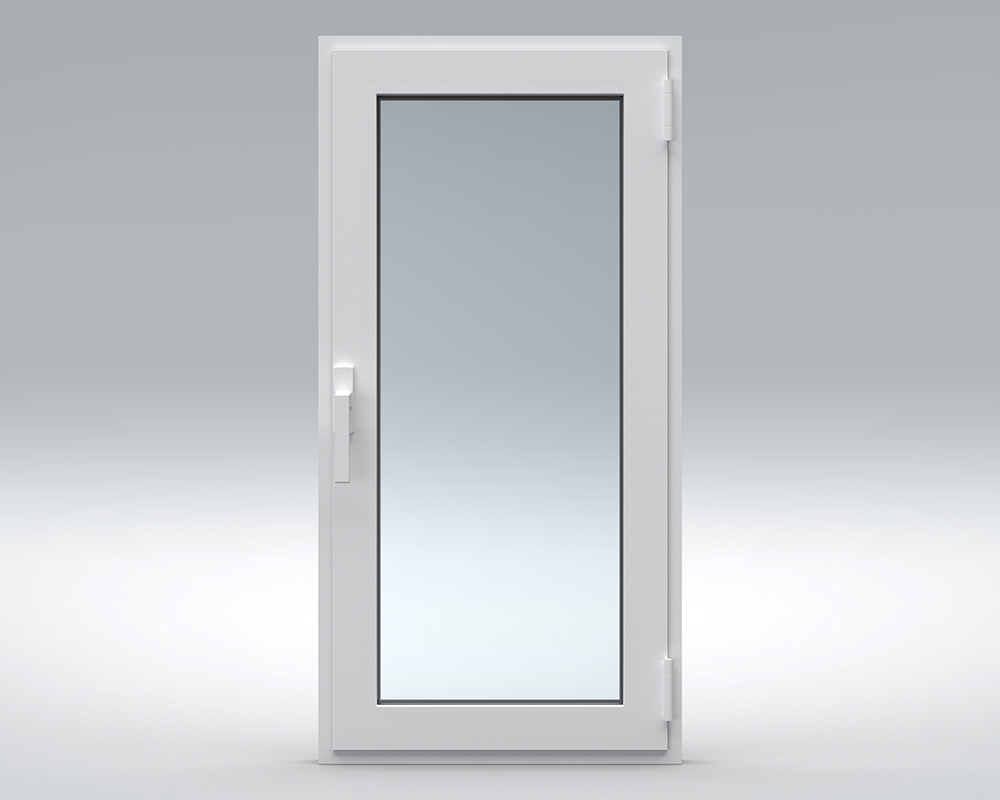

Introducing the 70/75 series thermal insulation aluminum alloy windows, providing superior insulation and wind resistance for your home. Made with high-quality aluminum, these windows have excellent durability and resistance to harsh weather conditions. With their advanced thermal insulation technology, the 70/75 series windows keep your home warm in the winter and cool in the summer, reducing energy costs and increasing your comfort. Additionally, these windows have exceptional wind resistance, ensuring your home is protected even in the most extreme weather.

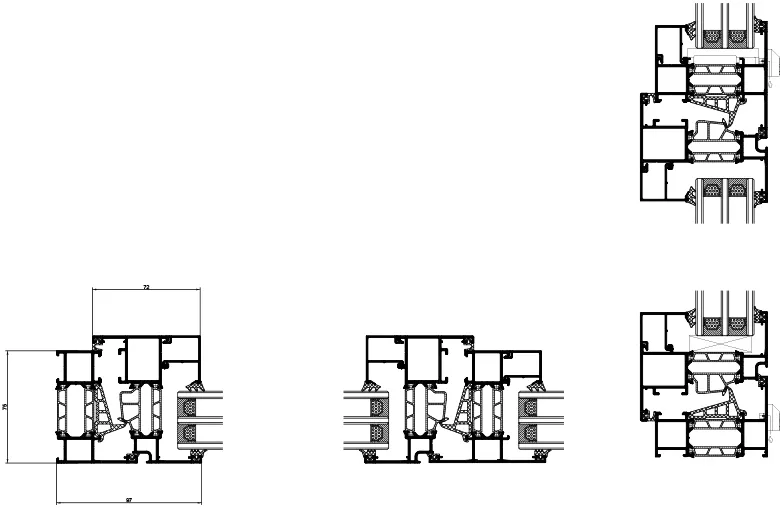

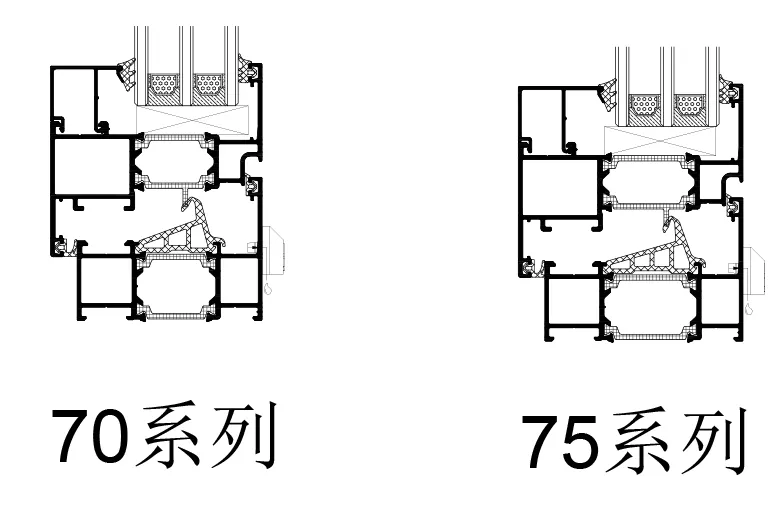

DRAWINGS
APPLICATION CASE
