PRODUCT DETAILS
The 60 series Thermally Improved Aluminum casement windows are customizable to your preferences and can be combined with other casements or operating styles for a striking look.
These casement windows open outward with a side hinge, akin to a door.
Made of high-quality aluminum with robust construction, they offer anti-theft, soundproofing, and thermal insulation.
Their sleek design suits modern homes, delivering superior quality at a favorable price.
Whether it is for a new house or an old house renovation, the 60 series thermal break aluminum alloy casement windows are a reliable choice for you.
| Wall thickness | 1.4/1.8mm |
| Depth of outer frame structure | 55/65mm |
| Fan structure depth | 65/70mm |
| Insulation strip width | 14.8/20mm |
| Frame visible surface width | 22/26/28/30/38/46mm |
| Suitable glass thickness | 16-33mm |
| Design type | Standard window |
| Enable function | Inner window/Outer window/Inner inverted window |
| Wind pressure resistance performance GB/T7106 | Level 9 5Kpa |
| Air tightness performance GB/7106 | Level 7 0.8m³(m•h) |
| Water tightness performanceGB/7106 | Level 6 700Pa |
| thermal insulating propertyGB/T8484 | 2.8-2.0W(㎡•k) |
| Sound insulation performanceGB/8485 | Level 3 |
Frame Colors:
Interior Frame Color: Clear Anodized, Bronze Anodized.
Exterior Frame Color:Clear Anodized, Bronze Anodized.
Between-the-glass grids
Grid Styles: Grids can vary in style, such as Flat Grid, Sculptured Grid, or custom designs.
Grid Patterns: We can create different patterns, like standard square patterns, elongated rectangles, or custom shapes, allowing for personalization.

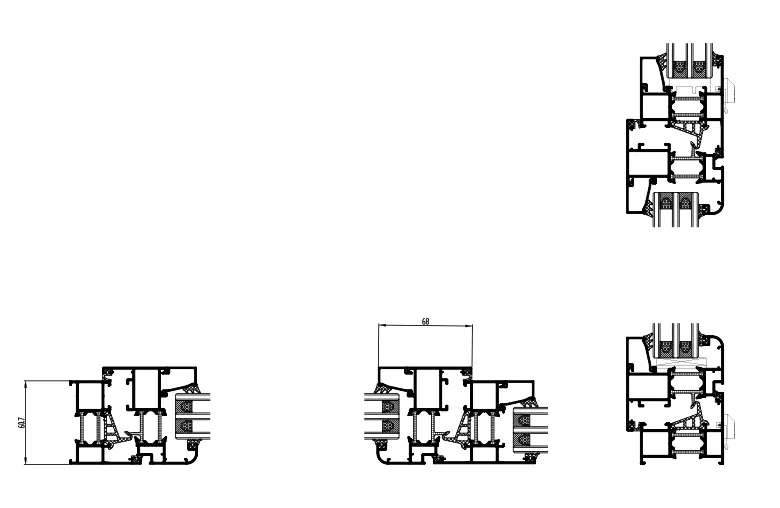

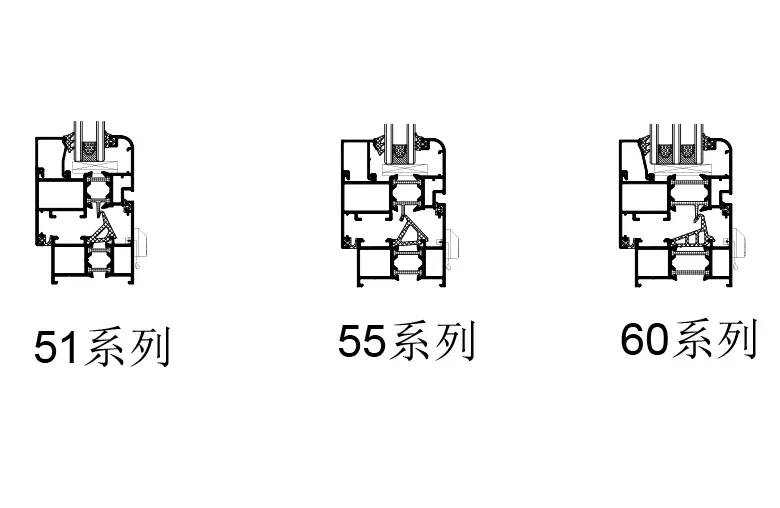

DRAWINGS
APPLICATION CASE
