TL120 Aluminium Lift Slide Patio Doors

Aluminium Lift slide doors from Frame Metal are your one-stop solution for strength and durability when accessing your patio or balcony. The TL120 lift-sliding door is a comfortable, user-friendly and space-saving variant. Such systems are made of aluminum.

Aluminum frames find extensive use in upscale residential and public structures. Their exceptional stability makes aluminum lift sliding patio doors a prime choice for creating expansive glass surfaces. Beyond their elegant and highly adaptable design, these doors offer remarkable ease of maintenance and exceptional longevity. Furthermore, contemporary aluminum systems shine in the aspects of safety and thermal insulation.

Lift and slide doors offer a unique design, consisting of a fixed and a movable sash. When these doors are closed, the sliding element securely seals in place, creating a perfectly airtight seal. The door handle, when operated, lifts the movable part out of this sealed position through the use of specialized fittings. Once lifted, it can then be smoothly slid sideways, running parallel to the fixed sash.

The lift and slide door system incorporates cleverly designed rails at both the top and bottom, along which the movable door leaf smoothly glides on rollers or carriages. This ingenious mechanism not only saves space but also makes opening and closing effortless. It also ensures a significantly superior level of tightness compared to other sliding patio doors.

An added benefit of the lift and slide system is the possibility of having a threshold that's level with your floor, creating a seamless transition between your interior and the exterior space. This allows for a wheelchair-friendly walk-through passage, making it an ideal choice for creating a connection between your living room and outdoor area.

This sliding door is ideal used in Patio, balcony.

Aluminium Lift Slide Patio Doors are designed to provide exceptional stability, ensuring your space remains secure and well-insulated. Aluminum frames are known for their robustness, while advanced thermal insulation technologies help regulate indoor temperatures, keeping your space comfortable in various weather conditions.

These doors come in a variety of styles, finishes, and configurations, allowing you to choose the perfect design to complement your aesthetic preferences and space requirements. Whether you have a modern or traditional design in mind, aluminum lift slide doors can be customized to suit your needs.

Aluminum is a low-maintenance material. It is resistant to corrosion and weathering, making it an ideal choice for exterior doors. This means you won't have to spend much time or effort on upkeep, allowing you to enjoy your doors without the hassle of frequent maintenance tasks.

Contact us now

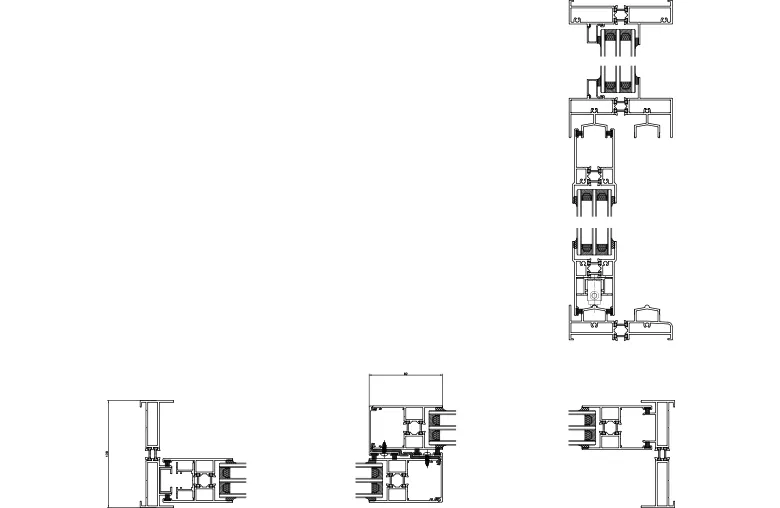

Aluminium Lift Slide Patio Doors Parameters

Wall thickness2.0mm
Outer Frame Structure Depth120/165mm
Sash Structure Depth52/46/65mm
Frame Visible Face Width30/37/53.5mm
Sash Visible Face Width75/81mm
Compatible Glass Thickness24-33mm
Opening FunctionSliding Opening
